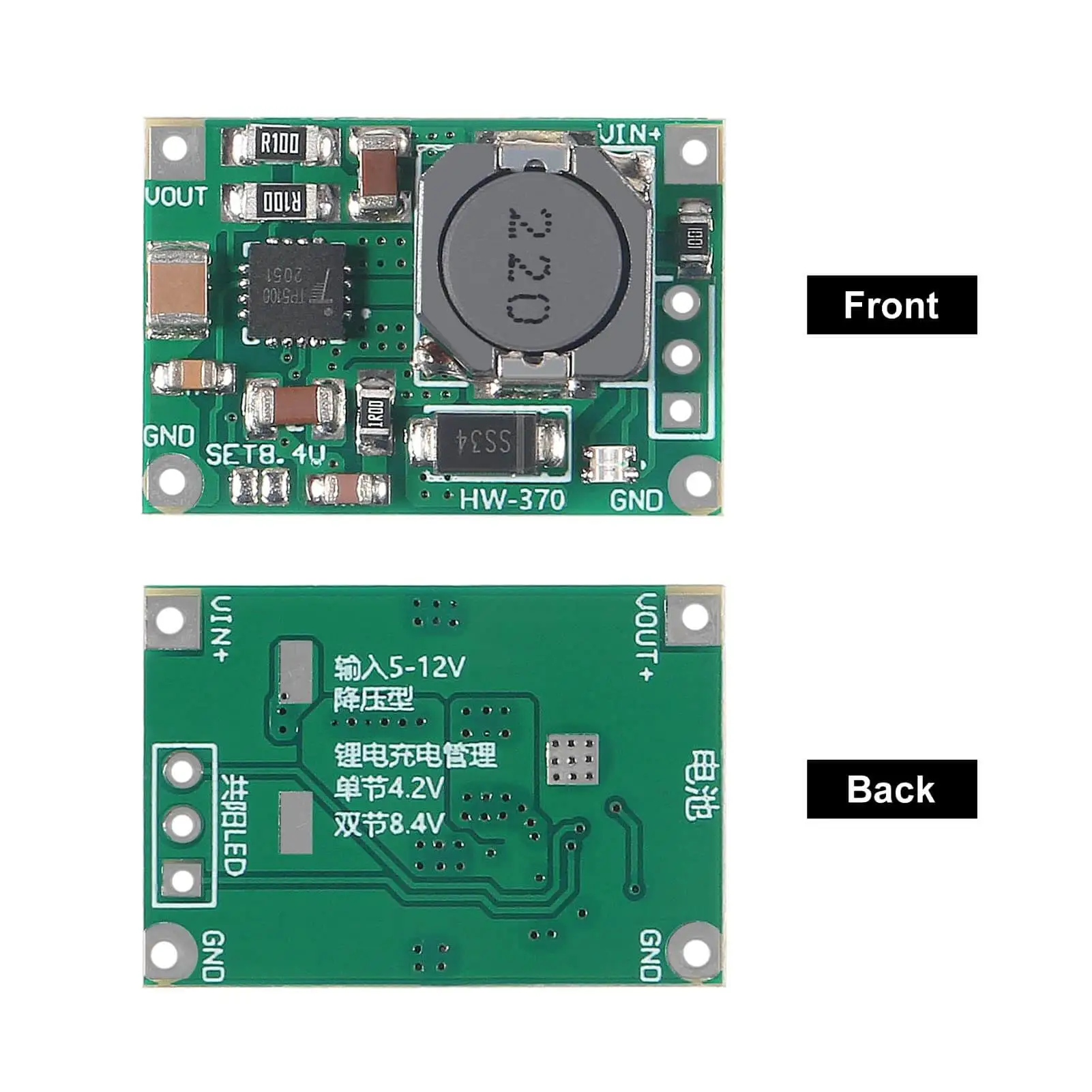

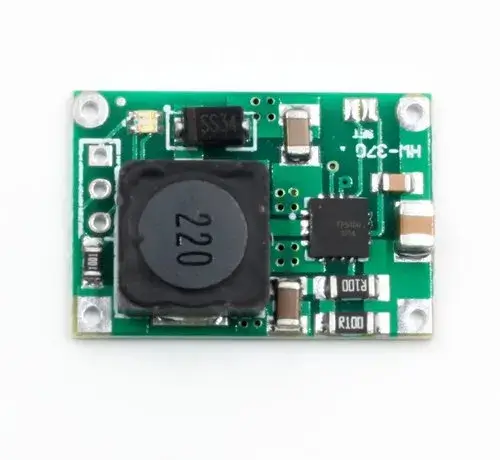

HW-370 TP5100 2A Li-Ion Battery Charger Module | Buy in Pakistan

The TP5100 is a 2A Lithium-Ion 18650 Battery Charger Module, featuring a dual-switch buck converter. It supports both 8.4V for dual-cell batteries and 4.2V for single-cell batteries. The TP5100 is housed in an ultra-compact QFN16 package with a simple external circuit, making it ideal for portable equipment requiring large current charging management. It includes built-in protections for overcurrent, undervoltage, over-temperature, short circuits, battery temperature monitoring, and reverse battery protection.

With a wide input voltage range of 5V-18V, the TP5100 offers three charging phases: trickle, constant current, and constant voltage. The maximum charge current is adjustable up to 2A. Its 400kHz switching frequency allows for smaller external components and minimal heat generation during high-current charging. The module includes built-in power PMOSFET and anti-intrusion circuitry, eliminating the need for external Schottky diodes.

Features:

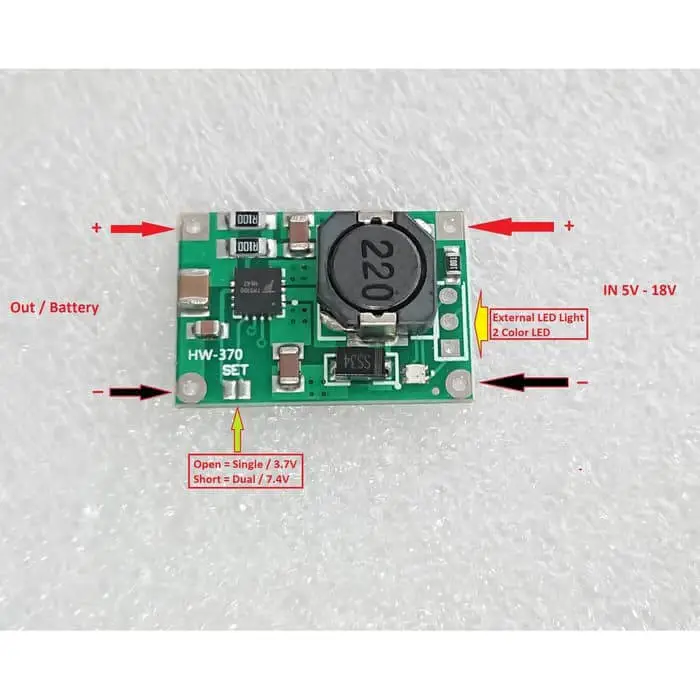

• Supports 8.4V dual-cell and 4.2V single-cell lithium batteries
• Programmable charge current: 0.1A-2A
• Adjustable recharge current: 10%-100%
• Wide operating voltage: up to 18V
• Red and green LED charge status indicators
• Comprehensive protection features: temperature, overcurrent, undervoltage, reverse battery, and short circuit
• 400kHz switching frequency, compatible with 20uH inductance
• PWR_ON for power battery switching control

Specifications:

• Size: 2.5 x 1.7 x 0.5 cm
• Input voltage: 5-18V DC
• Charge status indicators: Blue for full/unloaded, Red for charging
• Operating temperature: -40°C to 85°C
• Storage temperature: -65°C to 125°C

Applications:

• Portable equipment and various chargers
• Smartphones, PDAs, mobile phones
• MP4/MP5 players, tablets
• Power tools, walkie-talkies

Package Includes:

• 1 x HW-370 TP5100 2A Li-ion Battery Charger
