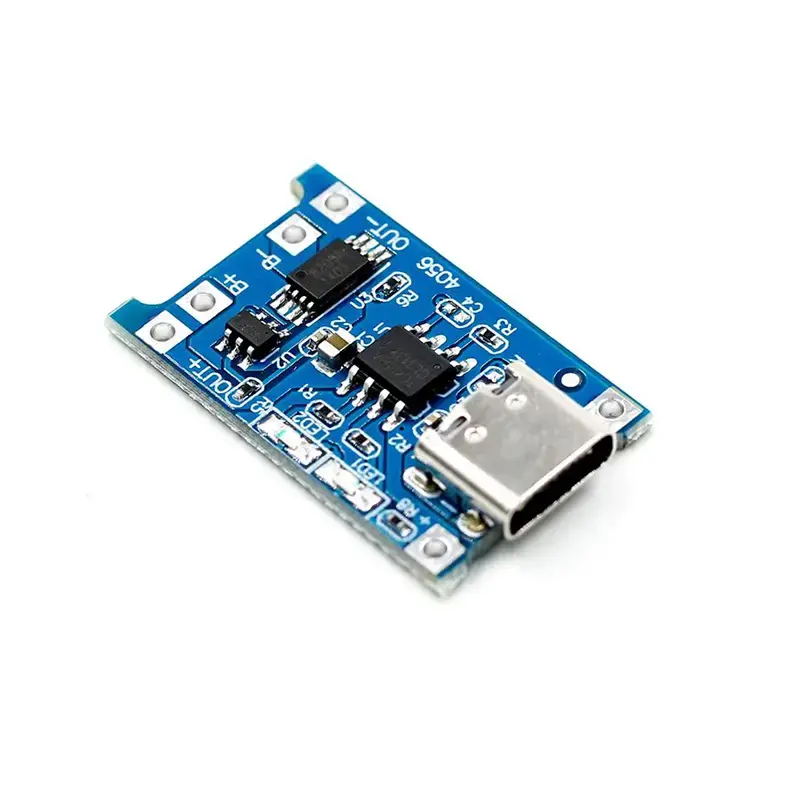

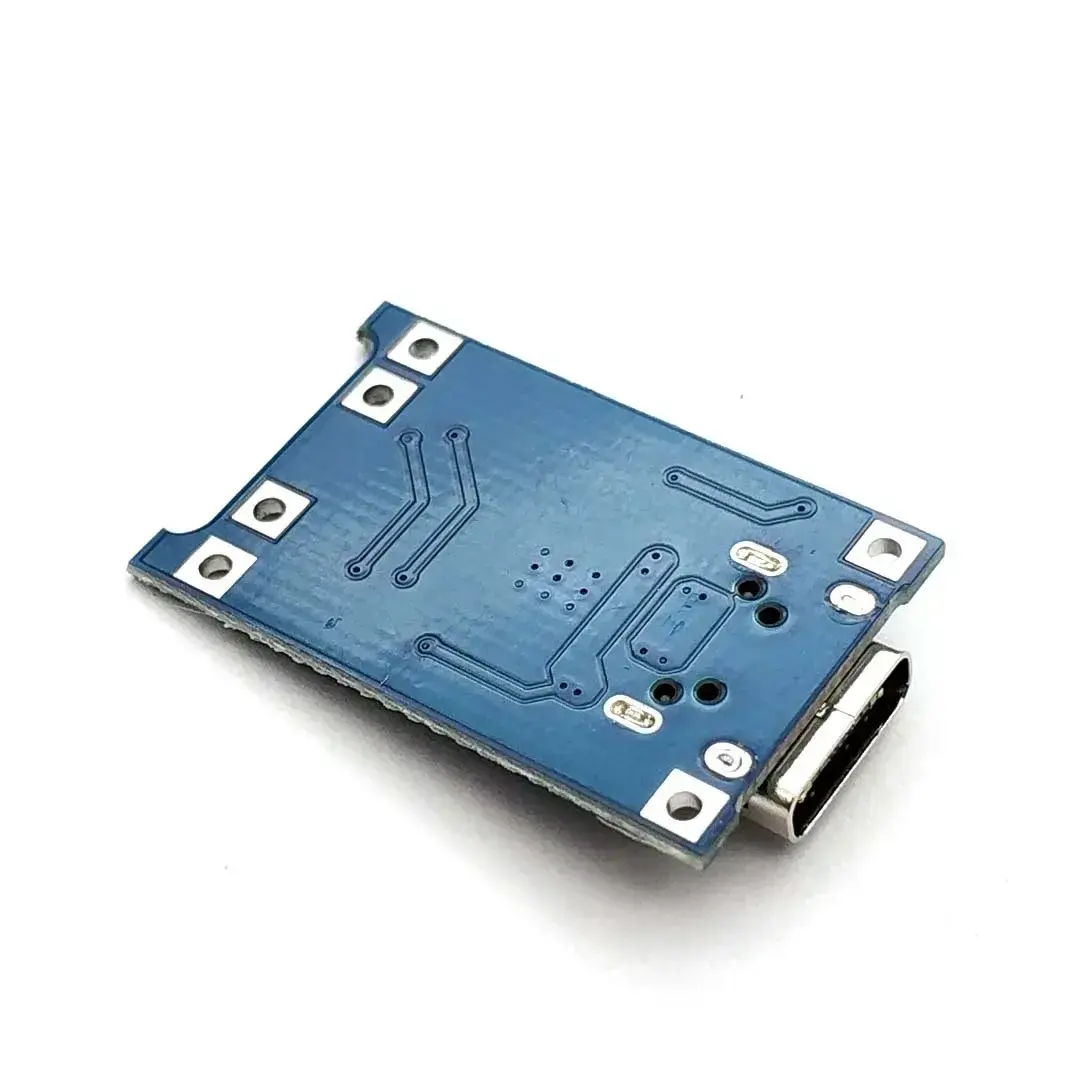

TP4056 Lithium Battery Charging Board 1A Type C

TP4056 Lithium Battery Charging Board 1A Type C In Pakistan- Efficient Lithium Battery Charger

TP4056 Lithium Battery Charging Board 1A TYPE C Overview:
Initially, there may be no voltage between Output+ and Output-. When you apply a 5V charge, it activates the protection circuit and the battery through B+ and B-. After activation, if the circuit is open, it needs to be shorted and recharged to reactivate the protection circuit. Ensure that the charger can output at least 1A, which is necessary for charging via a mobile phone charger.

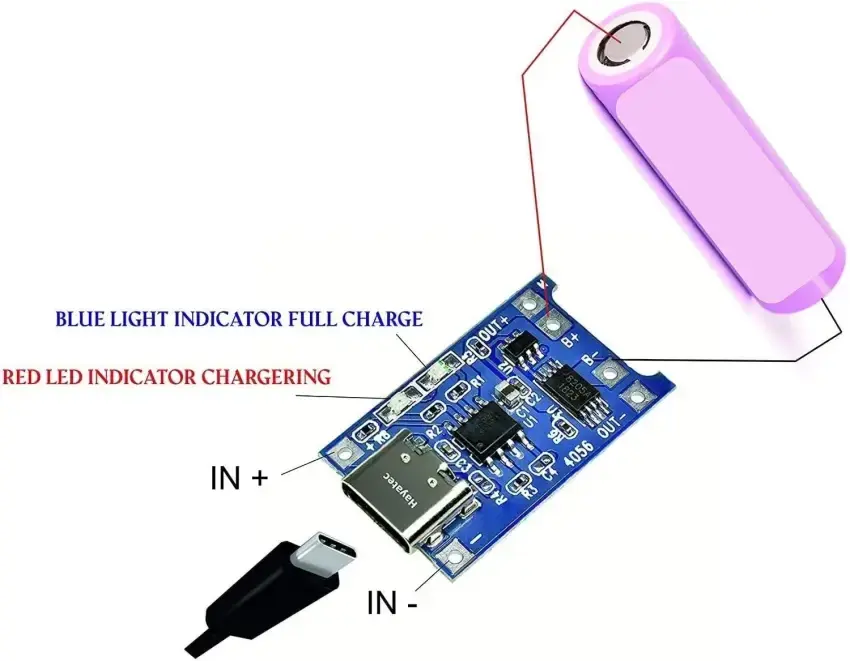

The Type-C female connector and the adjacent pads are for power input, which can access 5V. Connect the lithium battery’s positive terminal to B+ and the negative terminal to B-. OUT+ and OUT- are for connecting the load, such as a mobile booster plate or another load. Simply connect the battery to B+ and B-, and plug the charger into a USB port. The red light indicates that the TP4056 Lithium Battery Charging Board is charging, while the green light indicates that the battery is fully charged.

How to Use:

1. Power Input: Connect the Type C female port to a 5V power source.
2. Battery Connection: Attach the lithium battery to the B+ (positive) and B- (negative) terminals.
3. Load Connection: Connect the load to the OUT+ (positive) and OUT- (negative) terminals.
   When the battery is connected to B+ and B-, and the board is plugged into a USB charger:

• The red light indicates charging.
• The green light indicates a full charge.
  Important Note: Disconnect the load while charging. Ensure proper polarity to avoid damage.

Specifications:

• Power Input: Type C female port for 5V input (e.g., phone charger).
• Alternative Input: Retains wiring pads for DIY input voltage.
• Input Voltage: 5V.
• Charging Cut-off Voltage: 4.2V ±1%.
• Maximum Charge Current: 1000mA.
• Over-discharge Protection Voltage: 2.5V.
• Overcurrent Protection Current: 3A.
• Dimensions: 2.6 x 1.7 cm.

Package Includes:

• 1 x TP4056 Lithium Battery Charging Board 1A TYPE C
