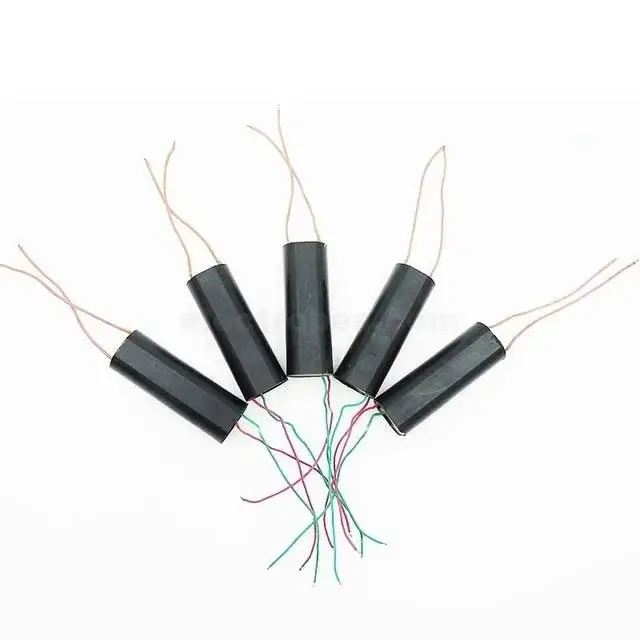

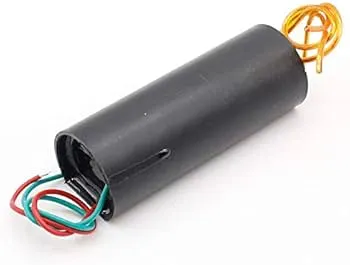

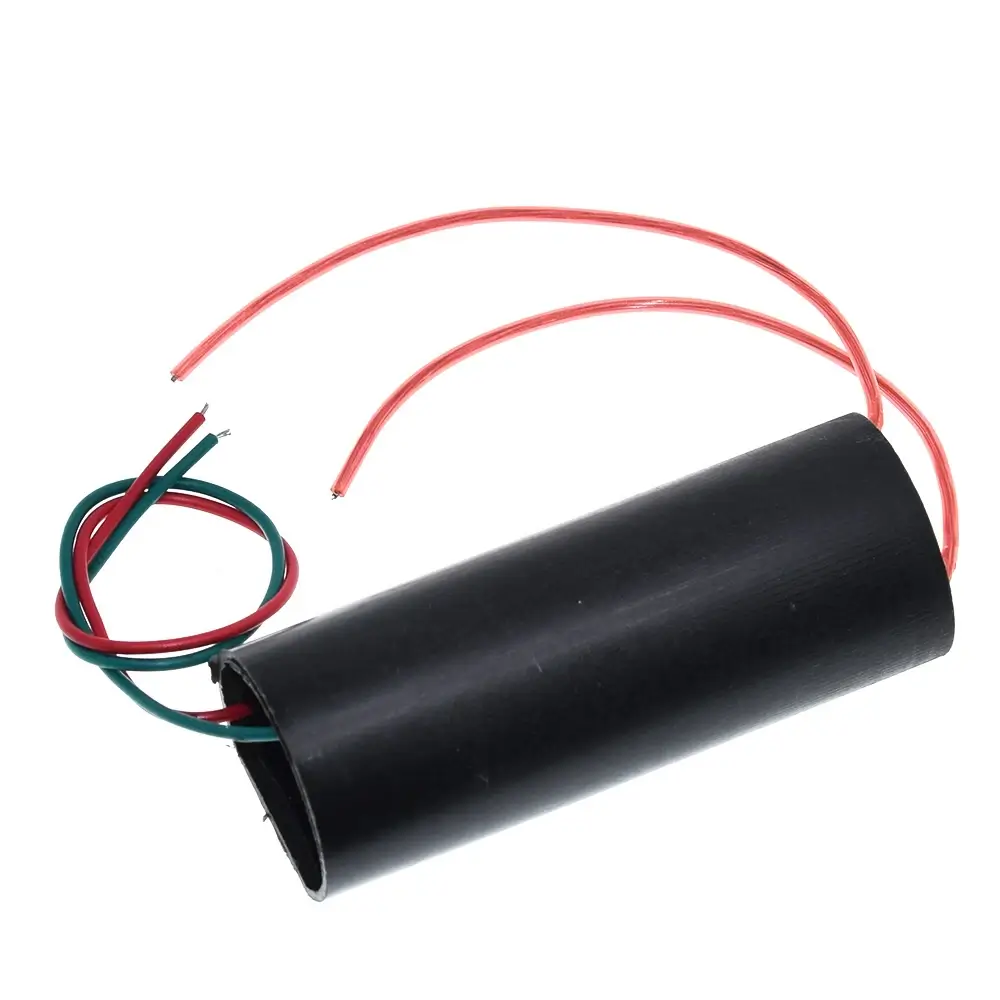

DC 3V-6V Boost Converter Module – High Voltage Generator for Stun Gun

DC 3V-6V Boost Step-Up Power Module | High Voltage Generator Stun Gun Module | Best price in Pakistan

The DC 3V-6V to 400kV Boost Step-up Module is a high-voltage generator designed to convert low DC voltage into a significantly higher output, reaching up to 400,000 volts. This compact yet powerful module is ideal for applications requiring high-voltage pulses, such as arc ignition, electronic experiments, and science projects. With its efficient step-up conversion, this module is an excellent choice for hobbyists and professionals alike, offering reliable performance in a variety of high-voltage applications.

Input Power:

This module can be powered by a 3.7V Li-ion battery, such as a single or dual 18650 cell, or by NiCd/NiMH battery packs, or 4V/6V lead-acid batteries. It’s recommended to use batteries with a capacity of 2000mAh or more.

Specifications:

• Input Voltage: DC 3V-6V
• Output Voltage: Up to 400kV
• Output Current: 0.5A-1A
• Input Current: 2A-5A (depending on the input voltage)
• Module Dimensions: 62mm x 24mm x 22mm
• Output Wiring Length: Approx. 100mm
• Input Wiring Length: Approx. 100mm

Features:

• Capable of boosting low DC voltage to a high voltage of up to 400kV
• Compact and lightweight design for easy integration into projects
• High efficiency with stable performance under varying conditions
• Designed for creating high-voltage arcs, ignition coils, and other high-voltage experiments
• Durable construction ensures long-term reliability

Additional Information:

• Applications: Ideal for use in high-voltage experiments, electronic projects, arc ignition systems, and scientific demonstrations.
• Safety Note: Handle with care; this module generates extremely high voltage, which can be dangerous. Always use appropriate safety measures.
• Operating Instructions: Connect the input leads to a DC power supply (3V-6V), and the module will output high voltage on the output leads.

Caution:

Ensure the high-voltage side is adjusted to the appropriate distance before powering on. The arc distance should start short and gradually increase during testing. Do not exceed the recommended arc distance to avoid damaging the module.

Package Includes:

• 1 x DC 3V-6V Boost Converter Module – High Voltage Generator
