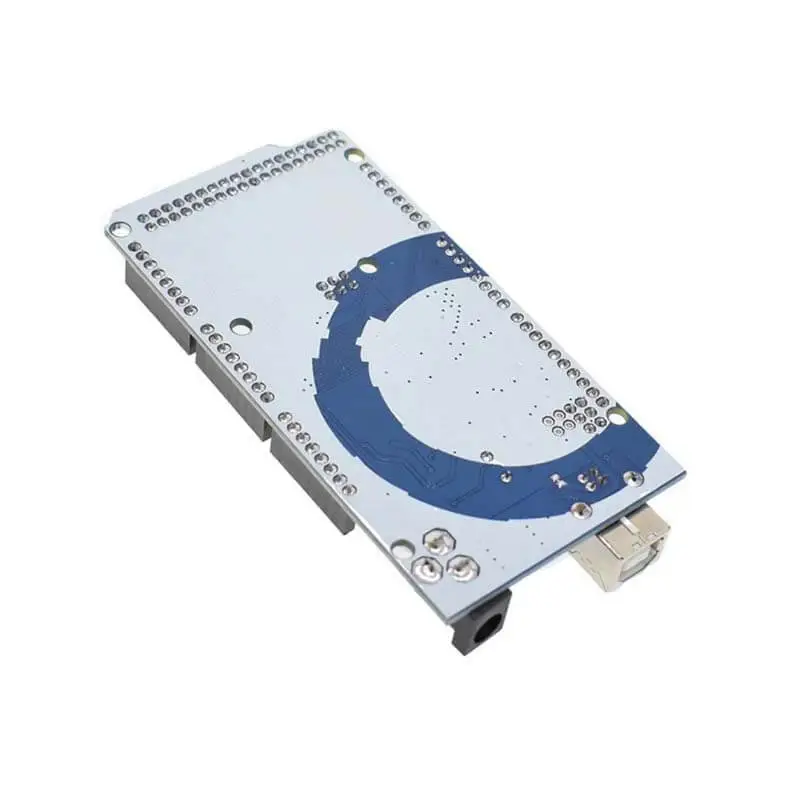

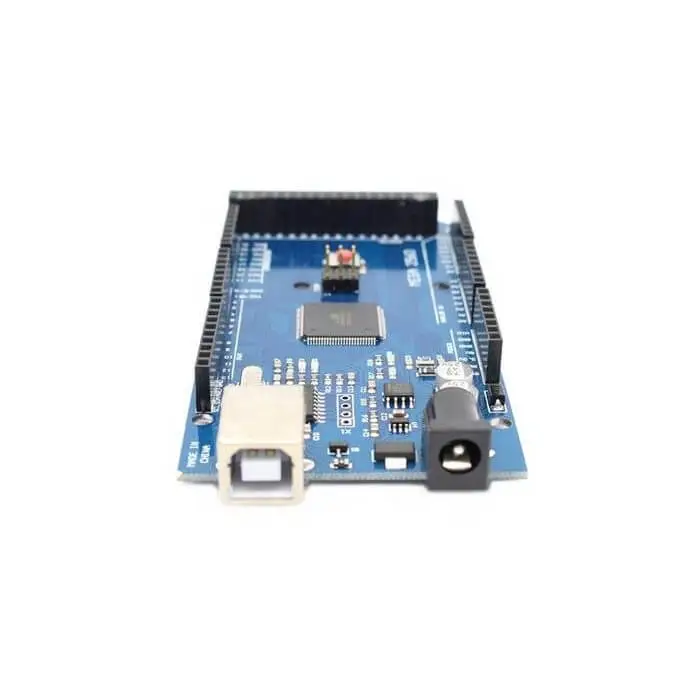

Arduino Mega 2560 R3

Arduino Mega 2560 R3 | Buy in Pakistan

The Arduino Mega 2560 is a powerful microcontroller board designed for advanced projects that require more I/O pins and greater processing capability. Ideal for professionals, students, and hobbyists alike, the Mega 2560 is built around the ATmega2560 microcontroller, offering a robust and versatile platform for developing complex electronics projects. With 54 digital I/O pins, 16 analog inputs, and a larger memory capacity, the Arduino Mega 2560 is perfect for handling more demanding applications such as 3D printers, robotics, and large-scale home automation systems.

Features:

• Powered by the ATmega2560 microcontroller for enhanced performance.
• 54 digital input/output pins (15 can be used as PWM outputs).
• 16 analog inputs for more complex sensor integration.
• 256 KB of flash memory for storing larger programs.
• 4 KB of EEPROM and 8 KB of SRAM for efficient data handling.
• Operates at 5V with a recommended input voltage range of 7-12V.
• Compatible with most Arduino shields and sensors.
• Built-in USB connection for easy programming and power.
• Reset button and ICSP header for easy reprogramming and debugging.
• Strong community support with extensive libraries and project examples.

Specifications:

• Microcontroller: ATmega2560
• Operating Voltage: 5V
• Input Voltage (recommended): 7-12V
• Input Voltage (limits): 6-20V
• Digital I/O Pins: 54 (of which 15 provide PWM output)
• Analog Input Pins: 16
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 256 KB (of which 8 KB used by bootloader)
• SRAM: 8 KB
• EEPROM: 4 KB
• Clock Speed: 16 MHz
• Dimensions: 10.2 x 5.3 cm

This board is perfect for those looking to push the limits of their Arduino projects, offering the flexibility and power needed to manage large, intricate designs.

Package includes:

1x  Arduino Mega Board
